STÖRNCH HYBRID

STÖRNCH Hybrid VRF Install Materials

Today’s buildings face stringent legislation, which means the utilisation of traditional HVAC technologies isn’t always possible. With regulations only getting stricter, manufacturers are being forced to innovate. Against this backdrop, manufacturers have developed the Hybrid VRF system.

How does Hybrid VRF work?

Put simply, Hybrid VRF is a 2-pipe heat recovery VRF (variable refrigerant flow) with water between the Hybrid Branch Controller (HBC) and indoor units. You can install and design it as VRF whilst enjoying the features of a Chiller system. Provides a complete modern solution for office buildings, hotels, medical centres, schools, high rise buildings, shopping centres and other commercial premises.

Hybrid VRF Key features & benefits

• Flexible application options
• Meets future requirements
• Fully packaged solution
• No refrigerant in occupied spaces
• Manageable phased installation
• Simplified 2-pipe design & installation

Hybrid VRF Key features & benefits

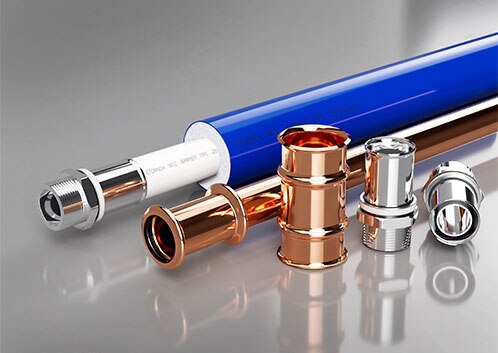

Combining the benefits of both plastic and metal pipes, STÖRNCH barrier pipe is a composite pipe comprised of 5 layers. It has an aluminium pipe at its core, with an inner and outer layer of high temperature resistant polyethylene. All layers are permanently bonded together by means of an intermediate adhesive layer. A special welding technique guarantees maximum safety. The patented system means joints can be made literally in seconds, and eliminates the need for complex practices like welding and soldering.
